Aged Simulation Suit II (M176)
- Model Name : Aged Simulation Suit II (M176 Series)
- Quantity : 1
Suit Specification
| Height | 165 ~ 175 cm |
|---|---|
| Total Weights | 약 7kg (전체 세트 기준) |
| Components |
M176 full-body aging simulation suit Adjustable vest and harness system Joint restriction bands (hip, knee, elbow) Wrist weights (250g * 4pieces) Ankle weights (500g * 4pieces) Vision-blurring goggles (1pair) Cane (1 piece) |

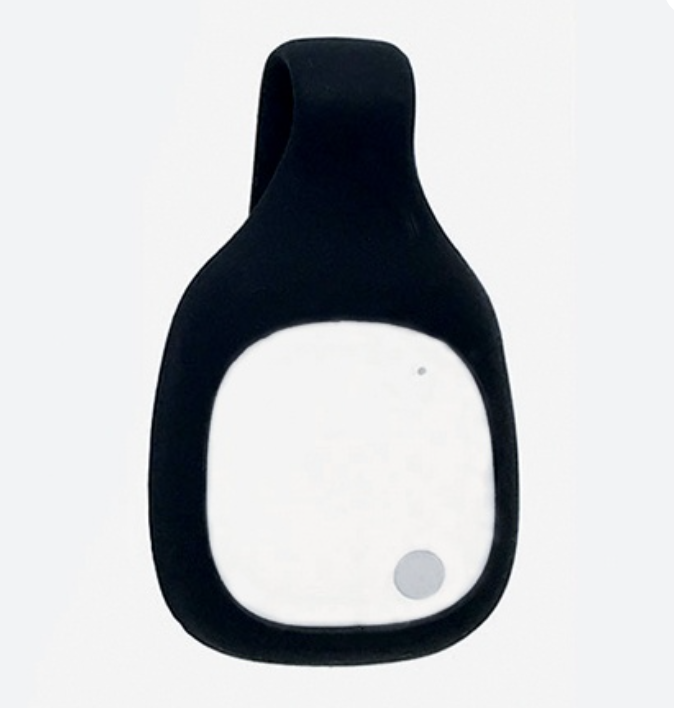

IMU Motion Sensor Device
- Model Name : MetaMotion S + Inertial Measurement Unit
- Quantity : 1
IMU Sensor Specification
| Sensors | 3-axis accelerometer 3-axis gyroscope 3-axis magnetometer |
|---|---|
| Degrees of Freedom | 9-axis |
| Sampling Rate |
Streaming: up to 100 Hz Logging: up to 400 Hz |
| On-board Memory | 512 MB NAND flash |
| Processor | Nordic nRF52 SoC (ARM Cortex-M4F) |
| Power Supply | 100mAh rechargeable Li-ion battery (micro USB) |
| Connectivity | Bluetooth Low Energy (BLE) |
