Driving Simulator

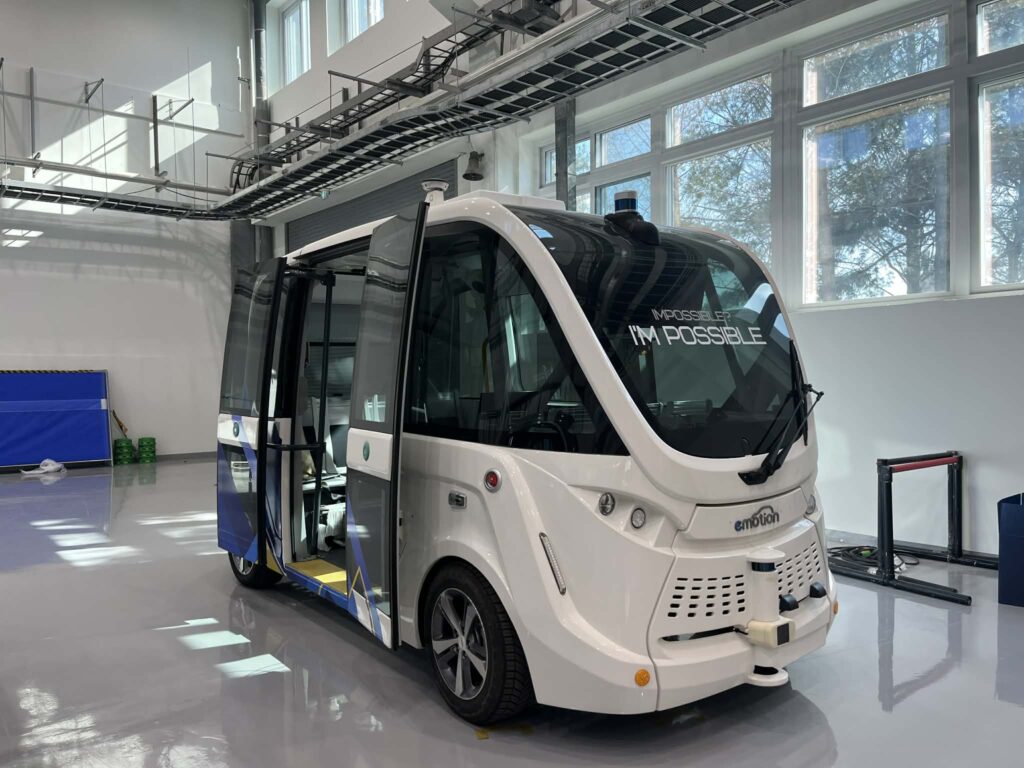

- Model Name : Navya Autonomous Vehicle
- Quantity : 2
Specification
| Operation Time | 9 hours on average |
|---|---|
| Speed | 25km/h maximum |
| Capacity | 15 passengers (11 seated, 4 standing) |

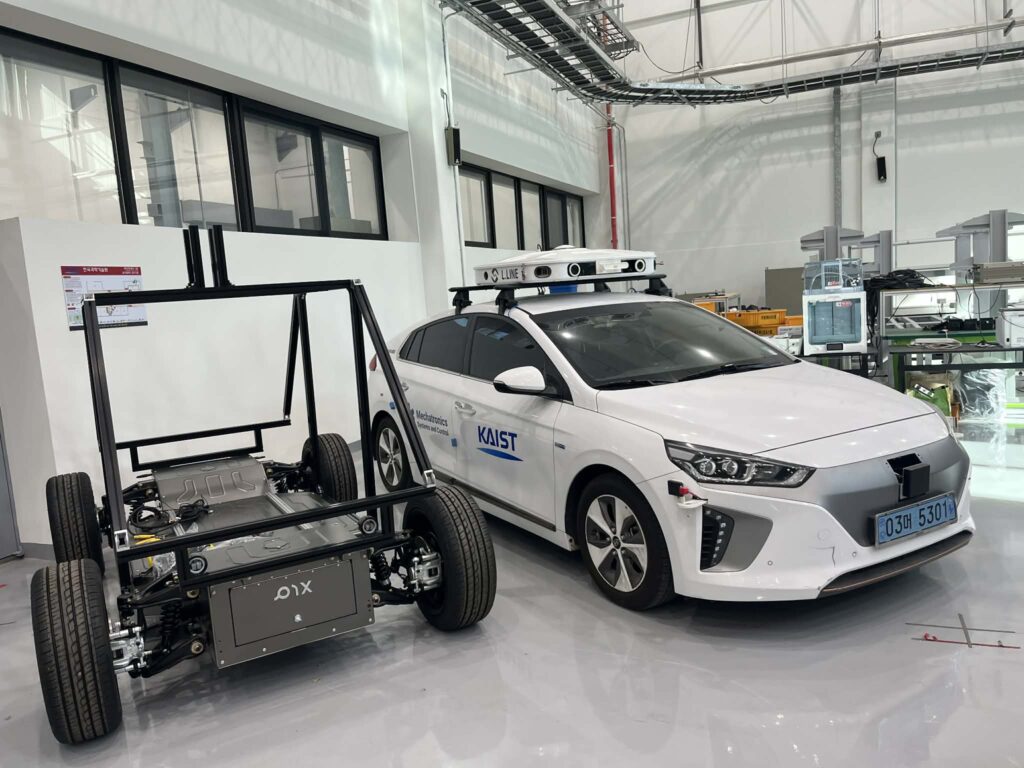

Autonomous Vehicle
- Model Name : Autonomous Vehicle
- Quantity : 2
OBU
- Model Name : OBU
- Quantity : 5
- Components
– Power : PoE (IEEE 802.3at)
– CPU : i.MX6DualLite (800MHZ)
– DRAM : 1 Gigabyte DDR3 SDRAM
– FLASH : Up to 16 Gigabyte eMMC (Default 8 Gigabyte)
– V2X Radio : 2radios (2 for IEEE802.11p)
– Security : IEE1609.2 Hardware Security Module (HSM)
– GNSS : GPS, GLONASS, GALLILEO, SBAS
– Sub Memory : MicroSD
– Interface : Ethernet (100Mbps)
– Accessories (Optional) : V2X Ant., GPS Ant.
RSU
- Model Name : RSU
- Quantity : 1
- Components :
- Feature :
– Power : 12/24V
– CPU : i.MX6DualLite (800MHZ)
– DRAM : 1 Gigabyte DDR3 SDRAM
– FLASH : Up to 16 Gigabyte eMMC (Default 8 Gigabyte)
– V2X Radio : 2radios (2 for IEEE802.11p)
– Security : IEE1609.2 Hardware Security Module (HSM)
– Sensors : Humidity, Temperature
– GNSS : GPS, GLONASS, GALLILEO, SBAS
– Sub Memory : MicroSD
– Interface : Ethernet (100Mbps)
– LEDs : Power, Status, Diag, F/W update, Fault
– V2X Standards : US-IEEE1609.2, 3, 4, 12
– Security : Hardware Security Module (HSM)
– Message Set : US-SAE J2735 (2016),
KOR-ITSK-00100, ITSK-00105-2
– Data Logging : Support
– IP/Firmware Protection : PUF (Physical Unclonable Function) implemented
